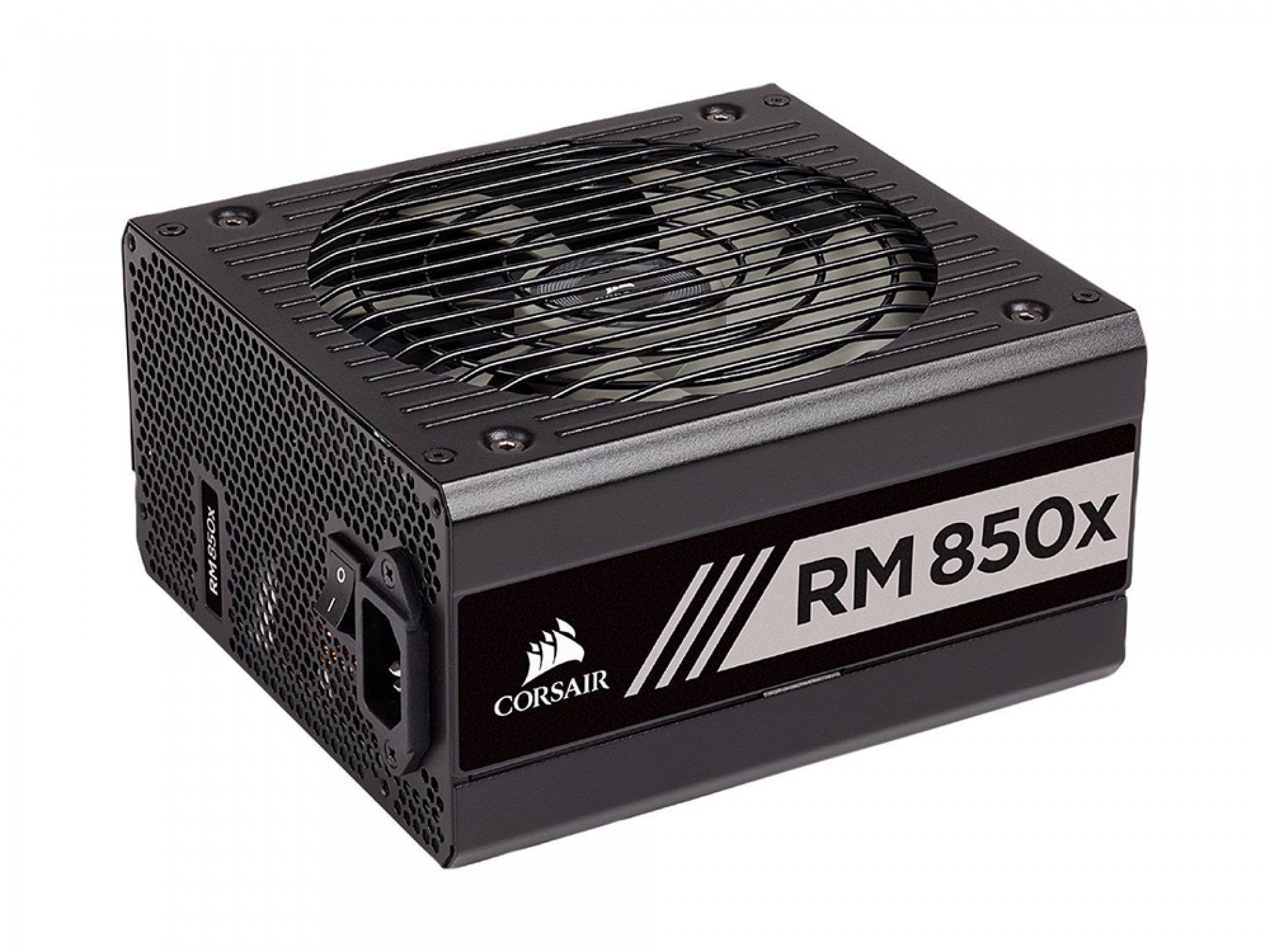

Corsair RM850x 850Watt 80 Plus Gold Certified Power Supply
Return & Warranty
No return policy
Change of mind is not applicable
No warranty
100% original product
-->
- 80 PLUS Gold certified for lower power consumption, less noise and cooler temperatures.
- Tuned for low noise operation even at full load.
- Zero RPM fan mode for near-silent operation at low to medium loads.
- 100% industrial-grade, 105°C rated Japanese capacitors ensure unwavering power and reliability.

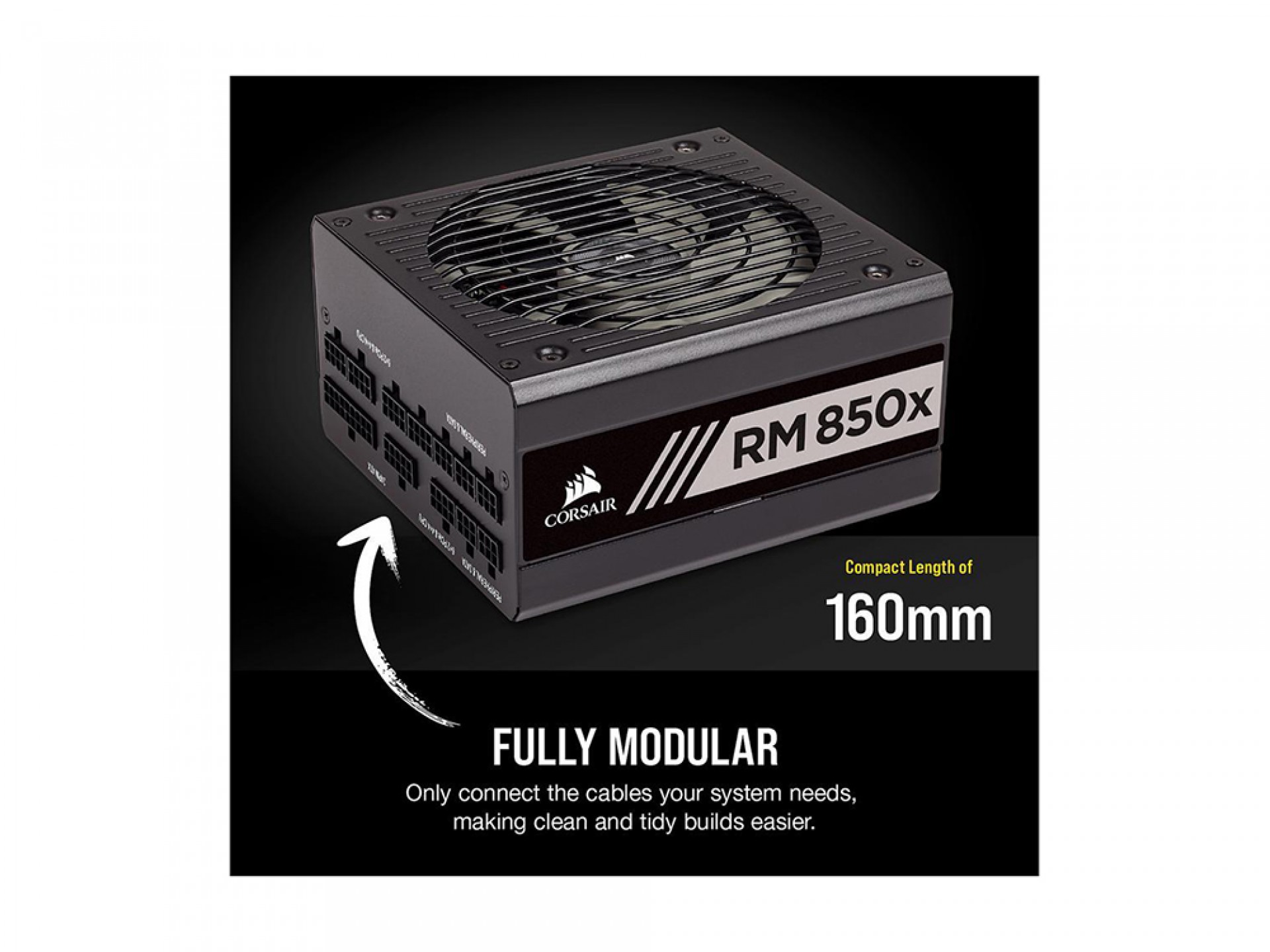

- Fully modular cables, so you only connect the cables your system needs.
- Compact 160mm size for easier builds. (RM550x, RM650x, RM750x, RM850x)
- Compact 180mm size for easier builds, (RM1000x)
- Ten-year warranty for complete peace of mind.
| CORSAIR RM850X 850WATT 80 PLUS | |
|---|---|
| Brand | CORSAIR |
| Series | RMx Series RM850x |
| Model | CP-9020180-NA |
| Details | |
| Type | ATX12V / EPS12V |
| Maximum Power | 850W |
| Fans | 1 x 135mm Rifle Bearing Low Noise Fan |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 10 |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 12A - 6A |
| Output | +3.3V@25A, +5V@25A, +12V@70.8A, -12V@0.8A, +5VSB@3A |
| MTBF | 100,000 hours |
| Approvals | FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH |
| Dimensions | 6.30 |
| Max PSU Length | 160 mm |
| Weight | 3.66 lbs. |
| Features | |
| Connectors | 1 x ATX 24-PIN (20+4) 2 x EPS/ATX12V 8-PIN (4+4) 6 x PCIe 8-PIN (6+2) 10 x SATA (3 SATA) 8 x PERIPHERAL (4-PIN) 1 x FLOPPY DRIVE ADAPTER (4-PIN) |
| Features | 80 PLUS Gold Certified: High efficiency operation for lower power consumption, less noise and cooler temperatures. Tuned for Low Noise Operation: A specially set fan curve ensures that, even at full load, fan noise is kept to a minimum. Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation. 100% All Japanese 105°C Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability. Fully Modular Cables: Only connect the cables your system needs, making clean and tidy builds easier. Compact Size: A 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds. |
| Package Content | RMx Series ATX Power Supply Power cord Mounting screws Cable ties Corsair case badge User manual |
| Warranty Information | |
| Manufacturing Warranty | 10 Years Warranty |
